Fermi-GBM GRB120528442 Summary
Trigger Summary
Trigger Time [MET] : 359894162.217274
Burst Pos RA [deg] : 306.3667
Burst Pos Dec [deg] : 6.6833
Burst Err Radius [deg] : 8.1333
Trigger significance [sig]: 5.2
Trigger time scale [ms] : 512
Trigger channel low : 3
Trigger channel high : 4
Trigger channel low (ADC) : 259
Trigger channel high (ADC): 1352
Triggered detector : 00000000011000
SC Geo East Long [deg] : 348.4233
SC Geo North Lat [deg] : 24.3636
GBM Light curves
Notes:
- 1) The data are from the Fermi-SDC: http://heasarc.gsfc.nasa.gov/FTP/fermi/data/
- 2) The light curve is generated using the Fermi-tool gtbin for the TTE data.
- 3) The individual panel shows the GBM light curve for each GBM detector (GBM-BGO: b0 and b1, GBM-NaI: from n0 to nb) in full energy range.

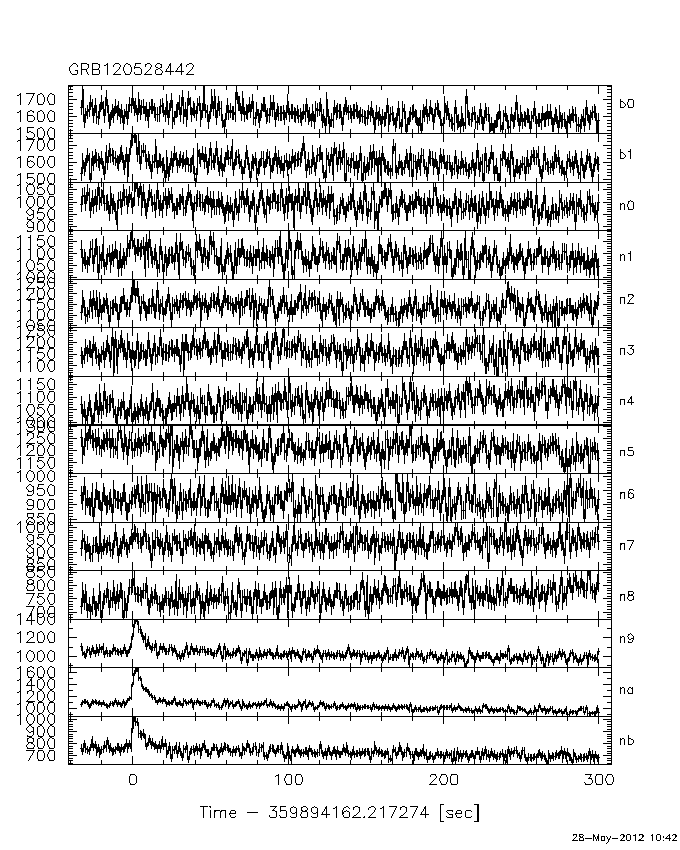

1s binning
All interval
From T0-10 to T0+100
From T0-10 to T0+50
From T0-10 to T0+10

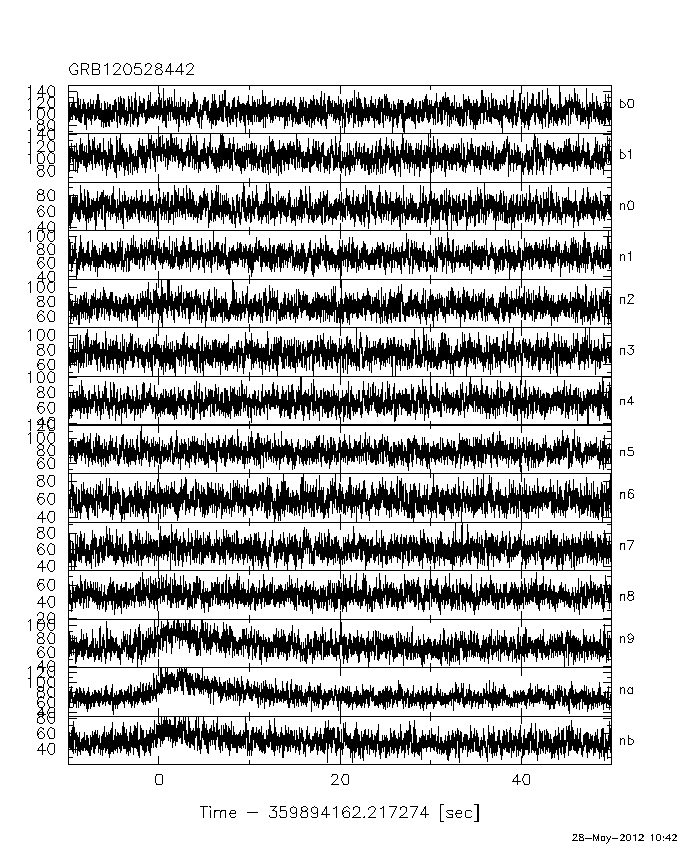

64ms binning
All interval
From T0-10 to T0+100
From T0-10 to T0+50
From T0-10 to T0+10
0.2ms binning
All interval
From T0-0.005 to T0+0.1
From T0-0.005 to T0+0.05
From T0-0.005 to T0+0.01
Need to wait for LAT data...
Time stamp of the LAT event data: 360660986.011349
GBM trigger time: 359894162.217274
TSTOP_LAT_EVT - T0_GBM = 766824 seconds
